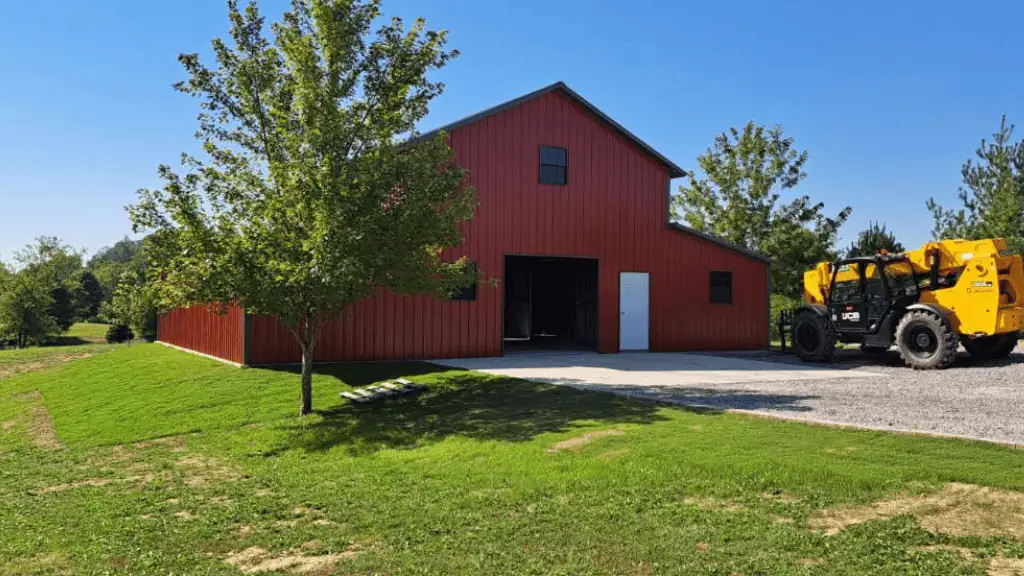

48x40 Storage Barn

A strong, permit-ready barn that works hard on day one. The 24×40 center aisle gives tall clearance for equipment, hay, and trailers. Two full-length lean-tos add dry storage, stalls, or a covered work lane. Vertical roof and siding shed water fast and hold up in rough weather.

This building features:

• Main building: 24′×40′ with vertical roof

• 14-GA steel framing, 16′ leg height with double legs on the main bay

• 6/12 roof pitch on the center aisle

• Certified 150 MPH / 35 PSF when installed to spec

• Walls: Ends closed and sides closed, vertical siding

• Left lean-to: 12′×40′, 8′ height, 3/12 pitch, ends and sides closed, vertical siding

• Right lean-to: 12′×40′, 8′ height, 3/12 pitch, ends and sides closed, vertical siding

• Rear lean-to: 8′×24′, 7′ height, 3/12 pitch

• (2) 30″×36″ windows on the front wall

• 9′×8′ garage door frame-out for a roll-up door

• 36″×80″ walk-in door, 6-panel, left-hand inswing
